Pressure testing unit for gas cylinders - Ø235mm/H1700mm - M187-000-XXX

Product description

PRESSURE TESTING UNIT FOR GAS CYLINDERS - Ø235mm/H1700mm

- Pressure testing unit for efficient and safe handling of seamless gas cylinders.
- Electric operated Inverter with pneumatic operated cylinder clamps.
- Suppplied with control panel and safety grating.

To be used together with: Test heads (M200-203-xxx), Water fill heads (M210-000), Emptying nozzles (M519-000).

• Proof pressure testing.
• Pressure: Test pressure up to 450 bar (higher test pressure is available on request).
• Cylinder diameter: Ø 140-235 mm.
• Cylinder height: 700-1700 mm


Product options

The following options are available:

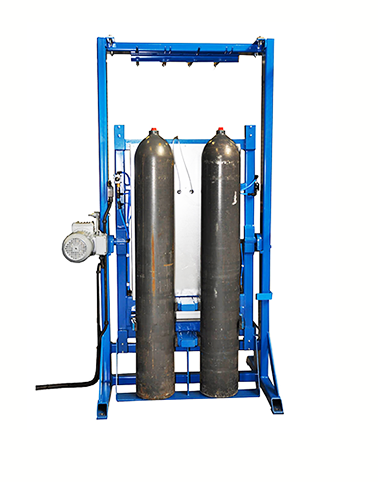

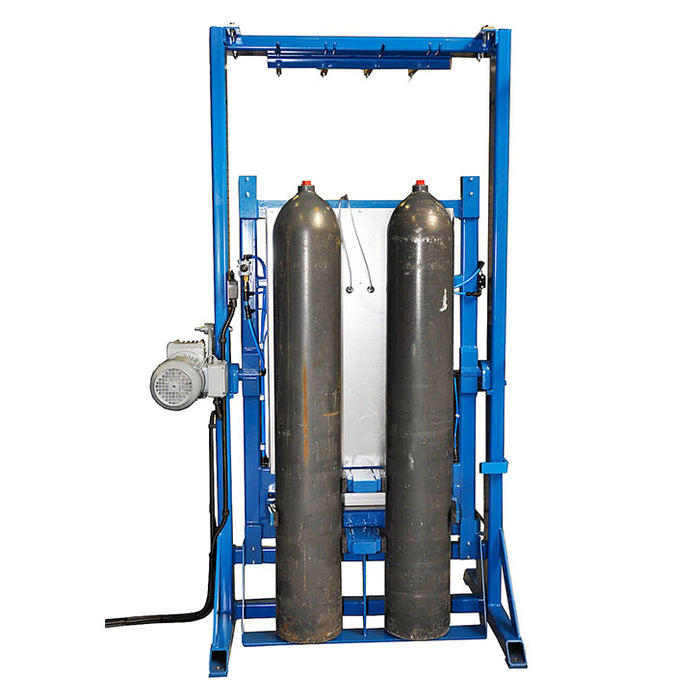

Pressure testing unit for 2 gas cylinders - M187-000-002.

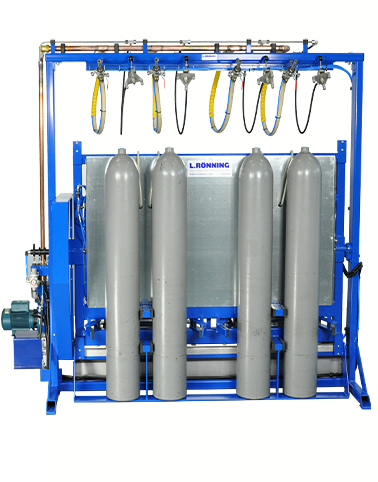

Pressure testing unit for 4 gas cylinders - M187-000-004.

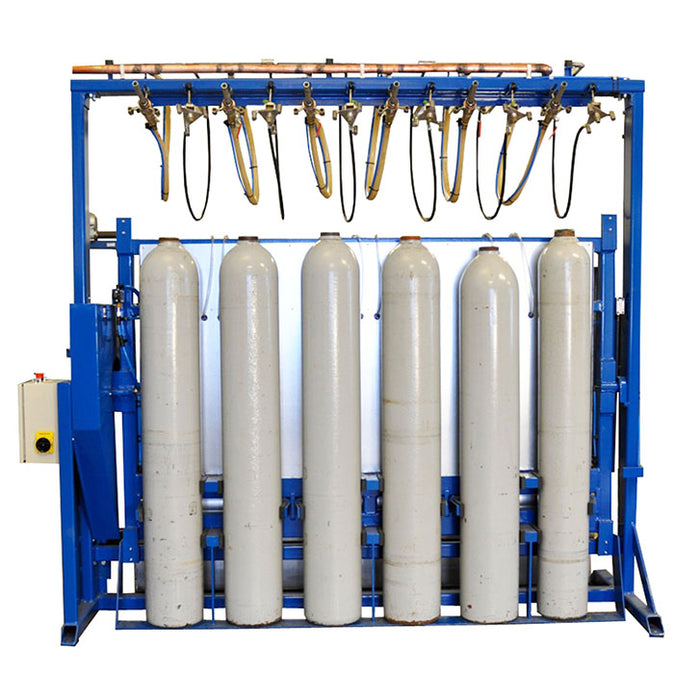

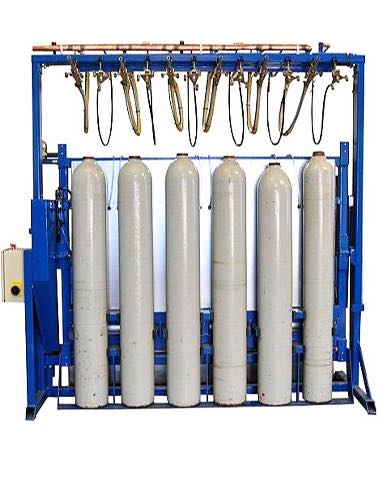

Pressure testing unit for 6 gas cylinders - M187-000-006.
Pressure testing unit for 8 gas cylinders - M187-000-008.
Pressure testing unit for 10 gas cylinders - M187-000-010.

Recommended options

Test heads - M200-203-XXX

Water fill heads - M210-000

Emptying nozzles - M519-000

Water fill pump - M187-420-235

Water catch tray - M187-420-00x

Standard rubber pad for clamp arm - M239-950-551
