Cylinder Manually Painting Machine

Cylinder painting machine for gas cylinders - M169-000-XXX

Option: 2 gas cylinders (M169-000-002)
Product description

CYLINDER PAINTING MACHINE

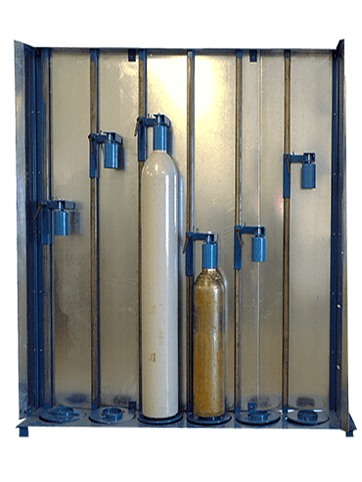

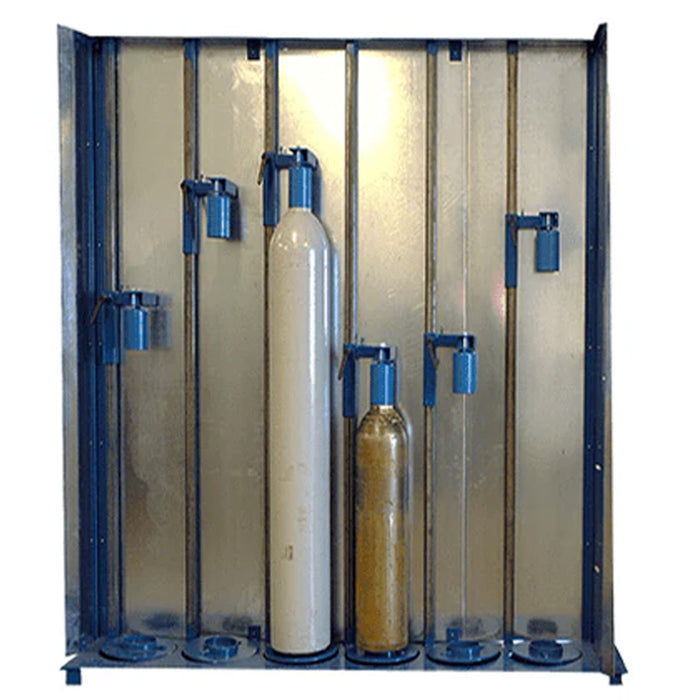

Safe and quick method to manually paint gas cylinders. The gas cylinder is placed on a turning disc and the cylinder is being painted as the cylinder is rotating.

- Walls 3 sides, front open.
- Worm gear motor for cylinder turning.
- Cylinder support with spring balancer.

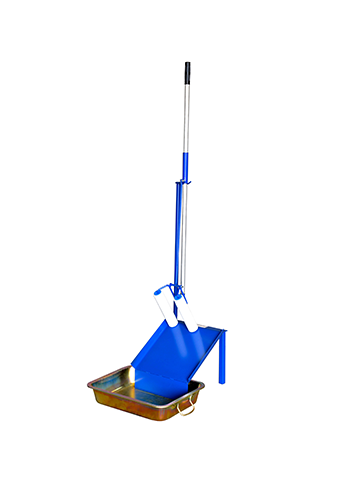

- M169-159-001 paint-trough and tools for painting.
- Start and stop push button.
- Connection for extraction at the rear

  • Cylinder diameter: 120 - 270 mm.
  • Cylinder length: 0 -1650 mm.
  • Typical process time for one 50L cylinder from loaded to fully painted 1 minutes.
Product options

The following options are available:

Manual painting for 2 gas cylinders - M169-000-002.
Manual painting for 3 cylinders - M169-000-003.
Manual painting for 4 gas cylinders - M169-000-004.
Manual painting for 6 gas cylinders - M169-000-006.

At request for quotation please specify option.
